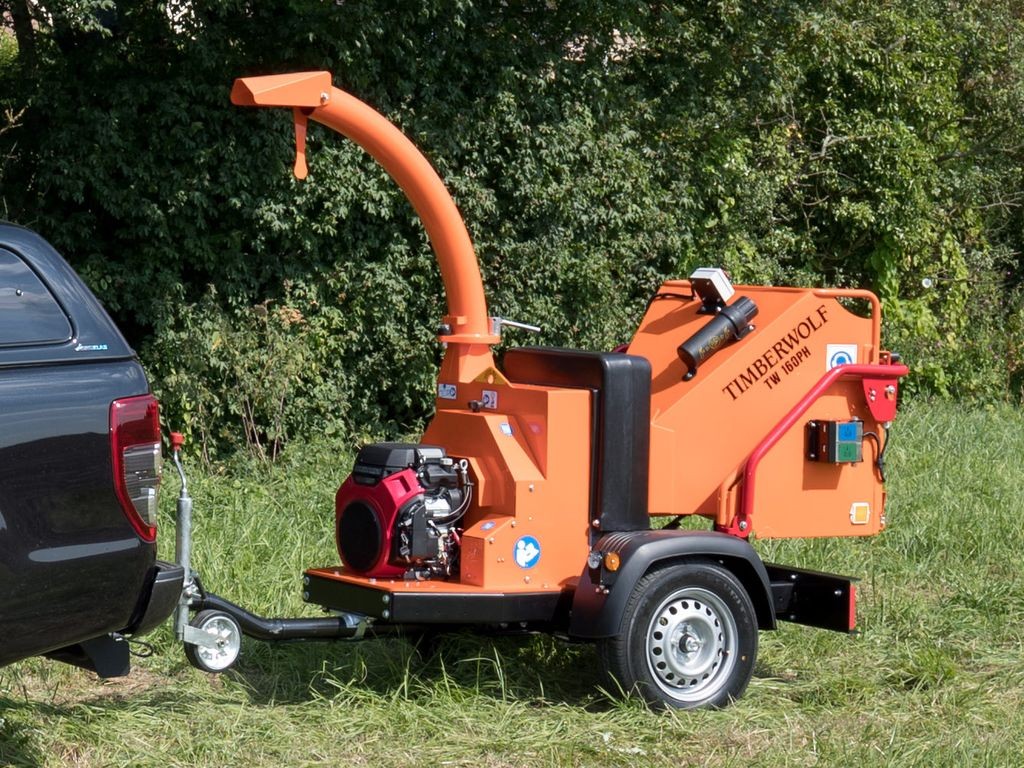

TIMBERWOLF TW 160PH
Lightweight, easy-to-use machine with easy maintenance for professional use. It replaces the TW125 PH with a number of enhancements: a new type of double-sided blades, an advanced machine design, an open top for easy feeding of trunks with large branches.
Main advantages:
- Gasoline engine Honda 22 HP,
- Max material diameter: 152 mm,
- Weight 608 kg,
- Knives: 2 easily accessible double-sided knives,
- Filling hole 160x160 mm,
- Easily accessible central lubrication points,
- Average chip size: 15 mm.
Description:
- Feeding: two pressure rollers with automatic feed control,
- Maximum power: 3.5 t / h,
- A rotary discharge funnel in the range of 270 degrees,
- Hour counter,
- Tank capacity: 18 l,
- Average fuel consumption: 4 l / h,
- Rotor diameter: 515 mm,
- Rotor speed: 1908 rpm.
Dimensions and weight:
| Type | Length | Width | Height | Weight |
|---|---|---|---|---|
| Timberwolf TW 160PH | 2935 mm | 1266 mm | 2108 mm | 608 kg |
Watch the video for Timberwolf 160PH chipper.
Photogallery
