Foldable Containers

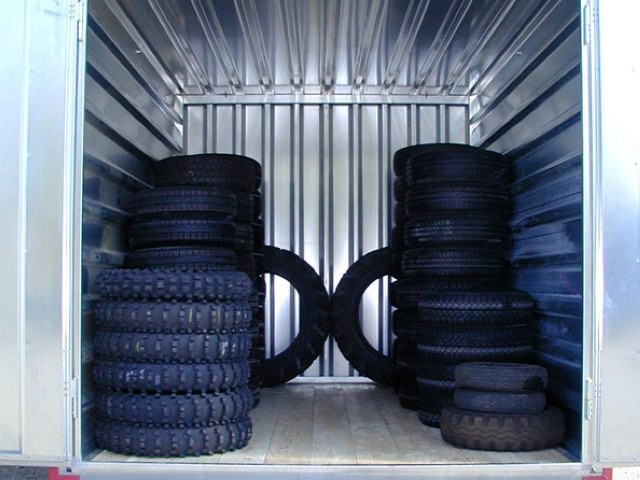

These containers offer a wide range of applications, in particular as storage of materials to which no special storing regulations apply, warehouse of material on the detached workplace, as mounting or dispatch container.
Constructed with a retaining tray, the containers are used as a manipulation warehouse for the storage of materials with a risk of leakage from packages. The containers are intended for combustible materials with a flashpoint in excess of 100 degrees Celsius.
This container has been issued with "TUV TYPE CERTIFICATE".

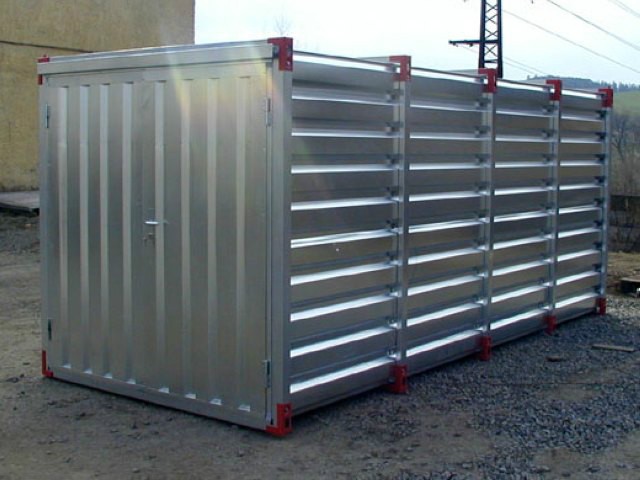

The containers are manufactured in lengths 2,25 / 3 / 4 / 5 / 6 meters, construction with retaining tray of length 2,25 and 3 meters.

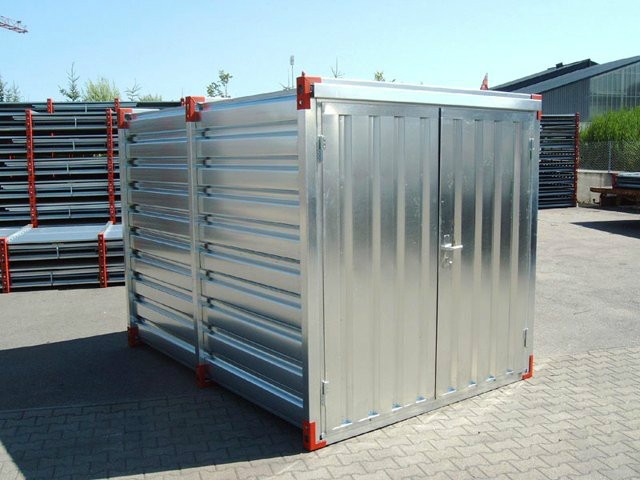

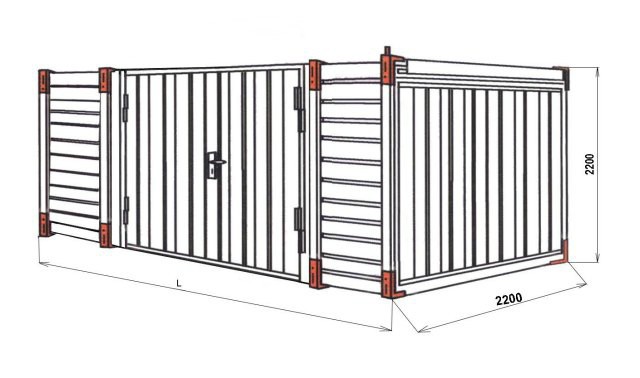

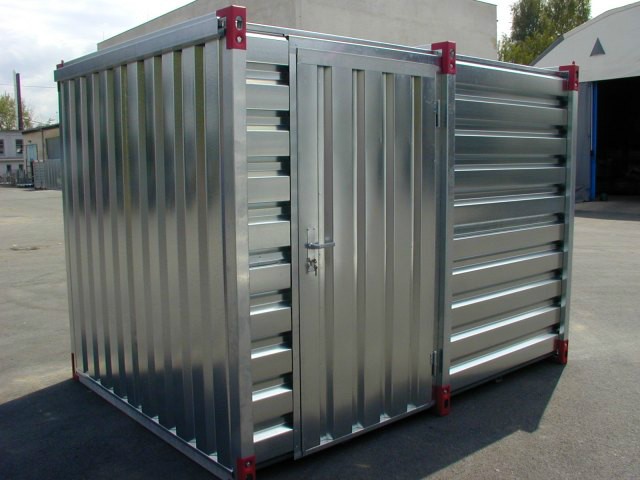

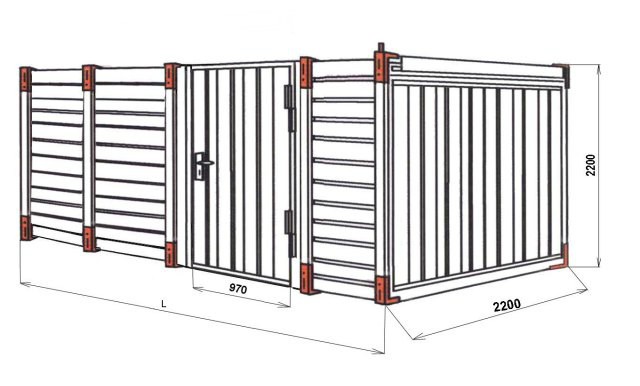

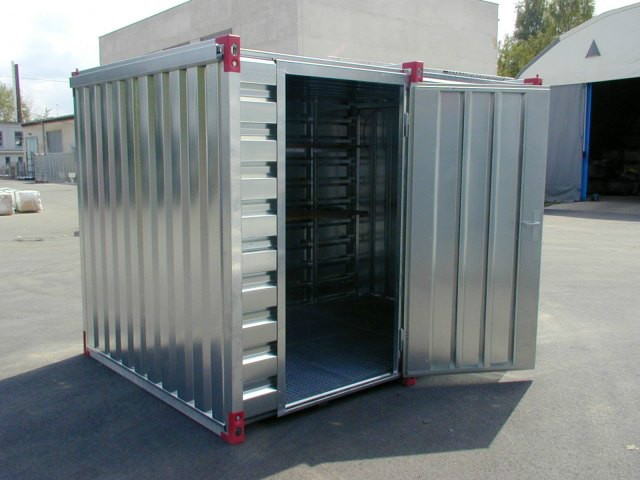

Foldable storage containers are made of trapezoid sheet metal of 0,75 mm thickness, bearing sections of 2 mm thickness and wooden bottom of 35 mm thickness. A double-wing door 1390 x 1390 mm with a handle and a lock is placed in the front wall or a single/double door in the sidewall. The container is equipped with cradle attachments.

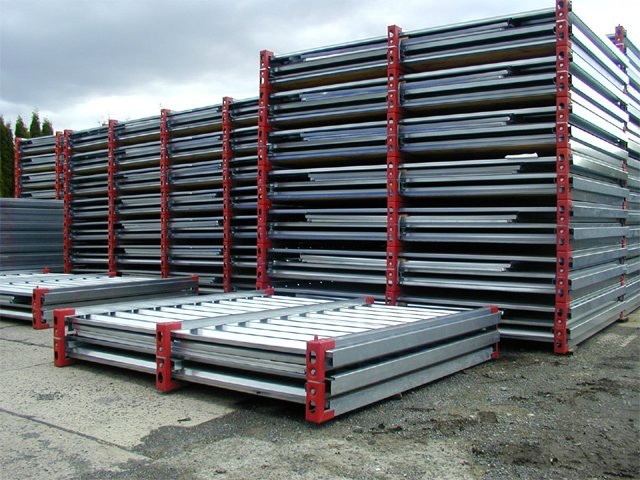

The containers are delivered dismantled and may be stacked up to 7 layers. It is possible to combine various lengths on a truck. It takes 1 - 2 hours to assemble. The containers may be also delivered assembled.

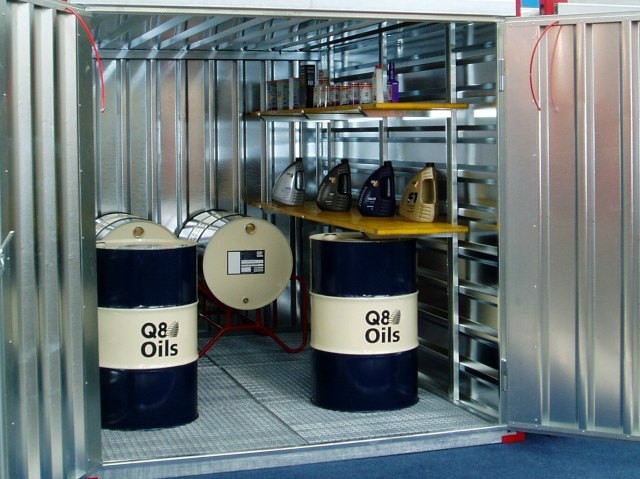

The FCA storage containers do not include a spill pallet. The FCB containers are fitted with a spill pallet made of a 2,5 mm-thick metal sheet. The volume of the pallet is either 275 litres in the case of a 3-meter-long container or 202 litres in the case of a 2-meter-long container

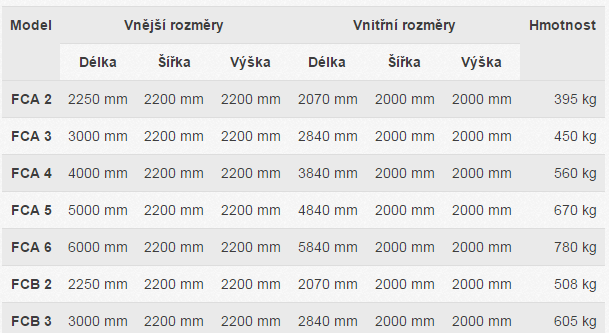

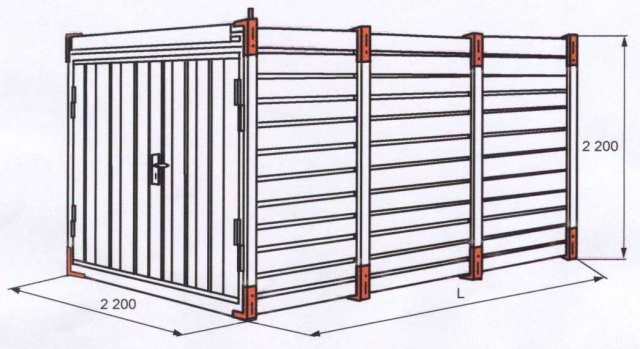

| Model | external dimensions | internal dimensions | weight | ||||
|---|---|---|---|---|---|---|---|
| length | width | height | length | width | height | ||
| FCA 2 | 2250 mm | 2200 mm | 2200 mm | 2070 mm | 2000 mm | 2000 mm | 395 kg |
| FCA 3 | 3000 mm | 2200 mm | 2200 mm | 2840 mm | 2000 mm | 2000 mm | 450 kg |
| FCA 4 | 4000 mm | 2200 mm | 2200 mm | 3840 mm | 2000 mm | 2000 mm | 560 kg |
| FCA 5 | 5000 mm | 2200 mm | 2200 mm | 4840 mm | 2000 mm | 2000 mm | 670 kg |
| FCA 6 | 6000 mm | 2200 mm | 2200 mm | 5840 mm | 2000 mm | 2000 mm | 780 kg |
| FCB 2 | 2250 mm | 2200 mm | 2200 mm | 2070 mm | 2000 mm | 2000 mm | 508 kg |
| FCB 3 | 3000 mm | 2200 mm | 2200 mm | 2840 mm | 2000 mm | 2000 mm | 605 kg |
Maximal loading
- 1500 kg for crane handling
- 3000 kg for fork-lift truck handling
- surface loading of bottom 500 kg/m3.
Options
- racks and girders
- retaining shelves for container 2 and 3 meters
- connecting kit for lengthwise connection of two containers
- second door instead of the rear wall (double-wing door)
- window and shutter 850x750 mm in side/rear wall
- window without shutter 300x577 mm in side/rear wall
- guides for a fork of a fork-lift truck
- floor with hot-dip galvanized surface finish (in length 2 and 3 m with double-wing door)
- the surface finish of external surface coated with powder paint
- a bar on single/double-wing gate
- ventilations grilles
