Hazardous Waste Containers
ASP 600/800/1500
Certified for storage and transport of hazardous solids and bulk substances. Standard containers (UN code starting with 11A) are suitable for the transport of substances that require packing group I./X, II./Y or III./Z, according to ADR / RID / IMDG / RTDG regulations.
ASP 600/800/1500 containers are certified according to Chapter 6.5 of the ADR Agreement as a large container for bulk substances (IBC, 11A) of solid or pasty nature. Filling and emptying is allowed by gravity (ie not under pressure).
Packaging requirements for a specific hazardous substance are not part of the packaging certification. In all cases, it is necessary to follow the relevant ADR guideline for the packaging of a specific dangerous substance. It is up to the user to ensure these requirements.
Specifications
- comply with DIN 30741, part I, UN certified,
- handling by forklift or crane,
- document pocket,
- hot-dip galvanized.

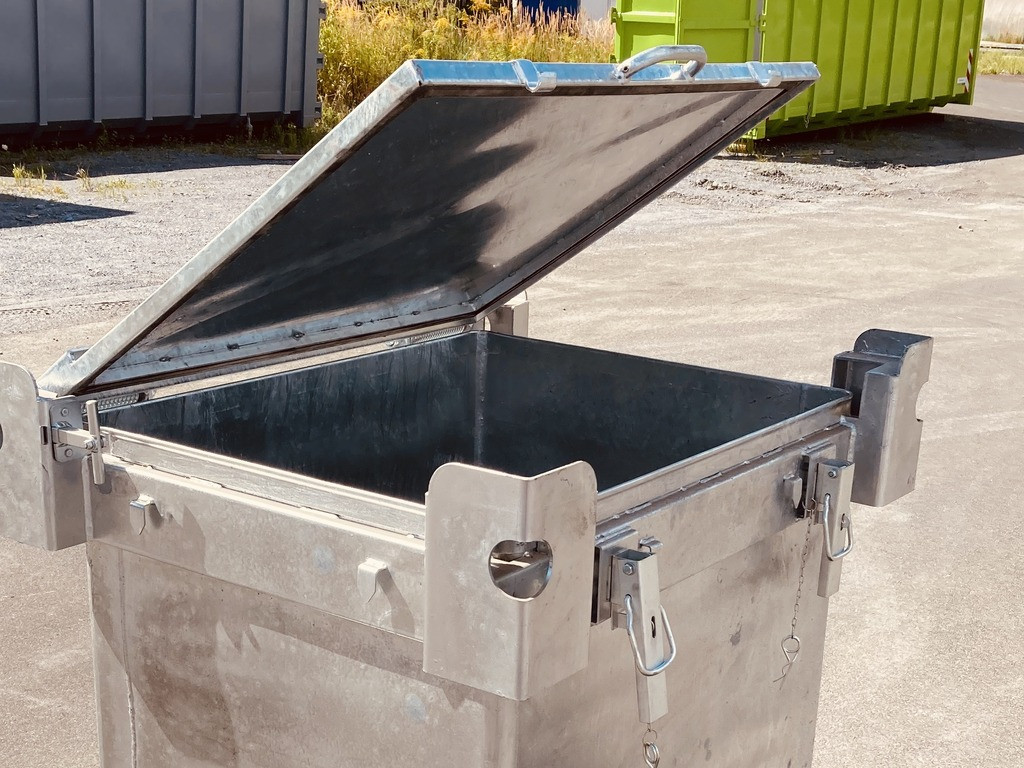

Cover
- equipped with a handle,
- lockable in the open position 81 degrees and automatic locking when open 270 degrees,
- 2 lid locks,
- lid lightening springs,
- lid thickness 2 mm,
- side thickness 2 mm,
- bottom thickness 2.5 mm.
| Type | length | width | height | volume | weight | brutto |
|---|---|---|---|---|---|---|
| ASP 600 11AX | 1200 mm | 1000 mm | 1060 mm | 600 l | 180 kg | 1450 kg |
| ASP 800 11AX | 1200 mm | 1000 mm | 1250 mm | 800 l | 190 kg | 1450 kg |
| ASP 1500 | 1440 mm | 1200 mm | 1665 mm | 1500 l | 320 kg | 1500 kg |
For the ASP 600/800/1500 type, ADR prescribes periodic inspections after 2.5 years from the date of manufacture. The inspection will extend the validity of the UN code by 2.5 years.

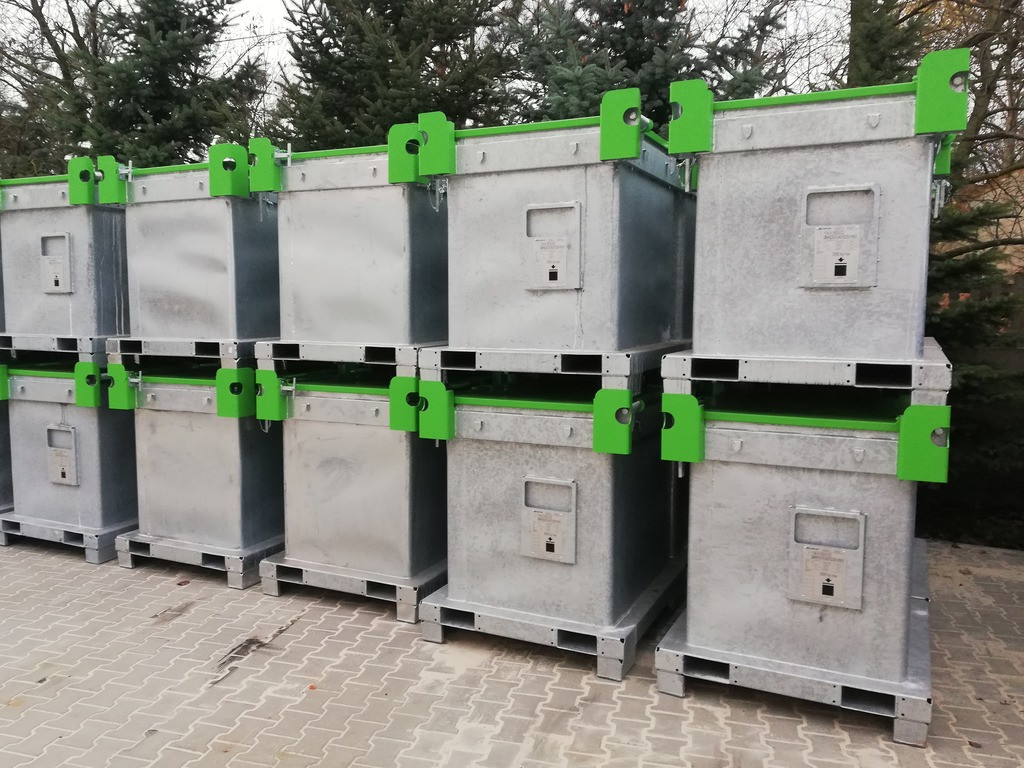

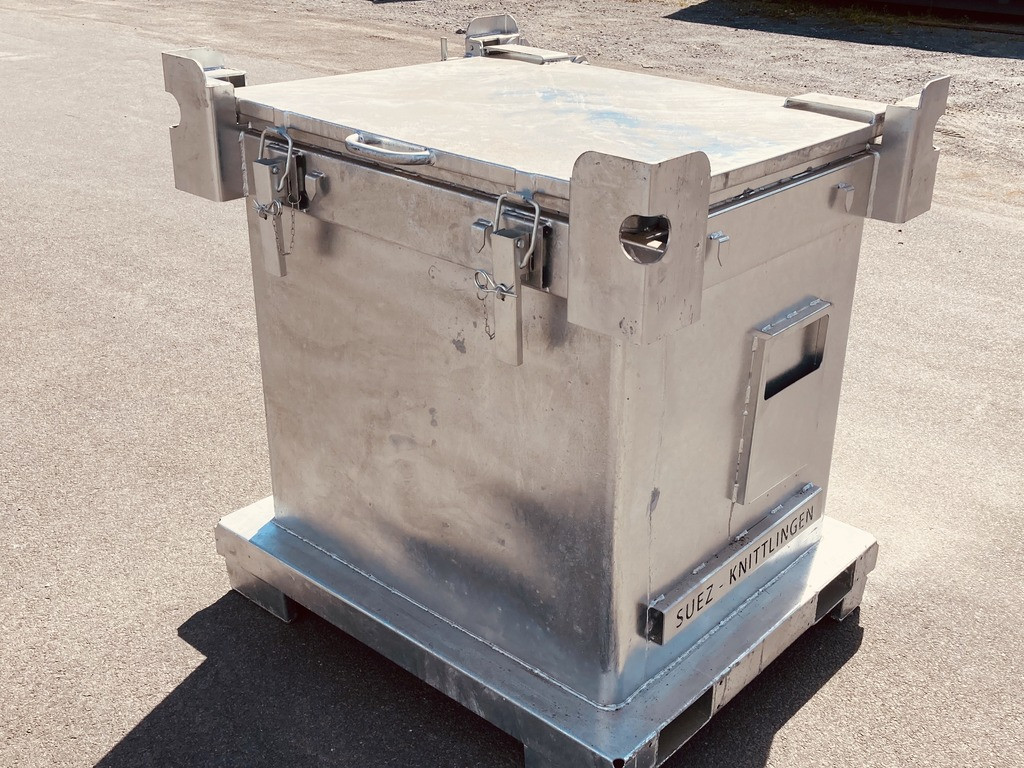

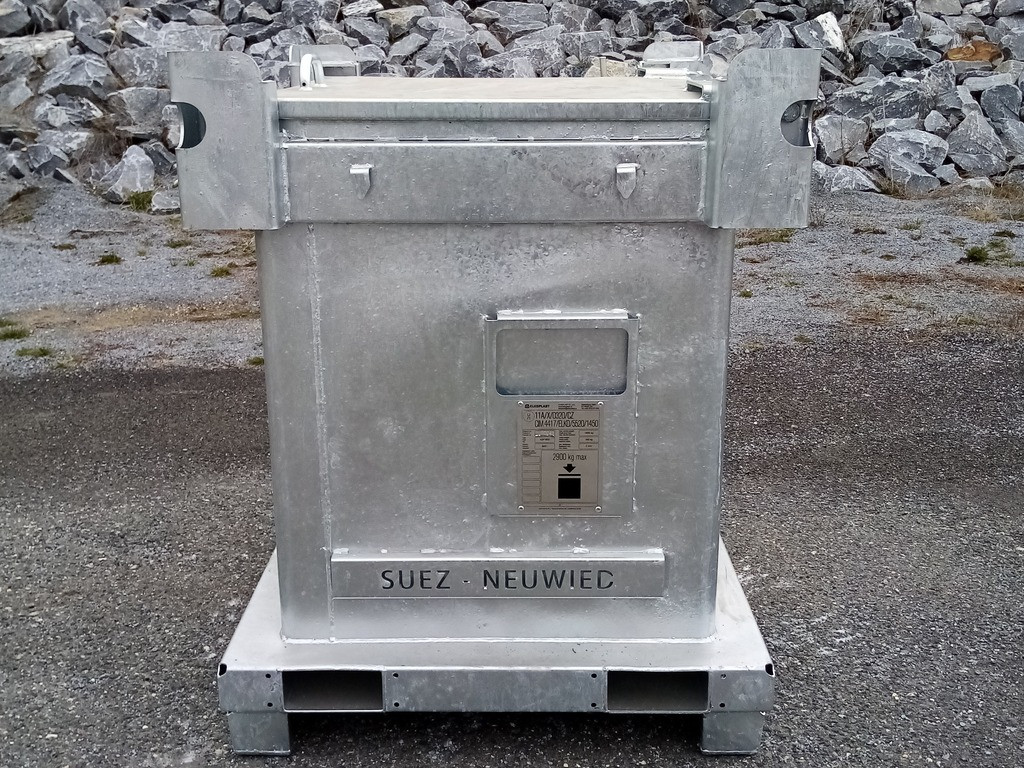

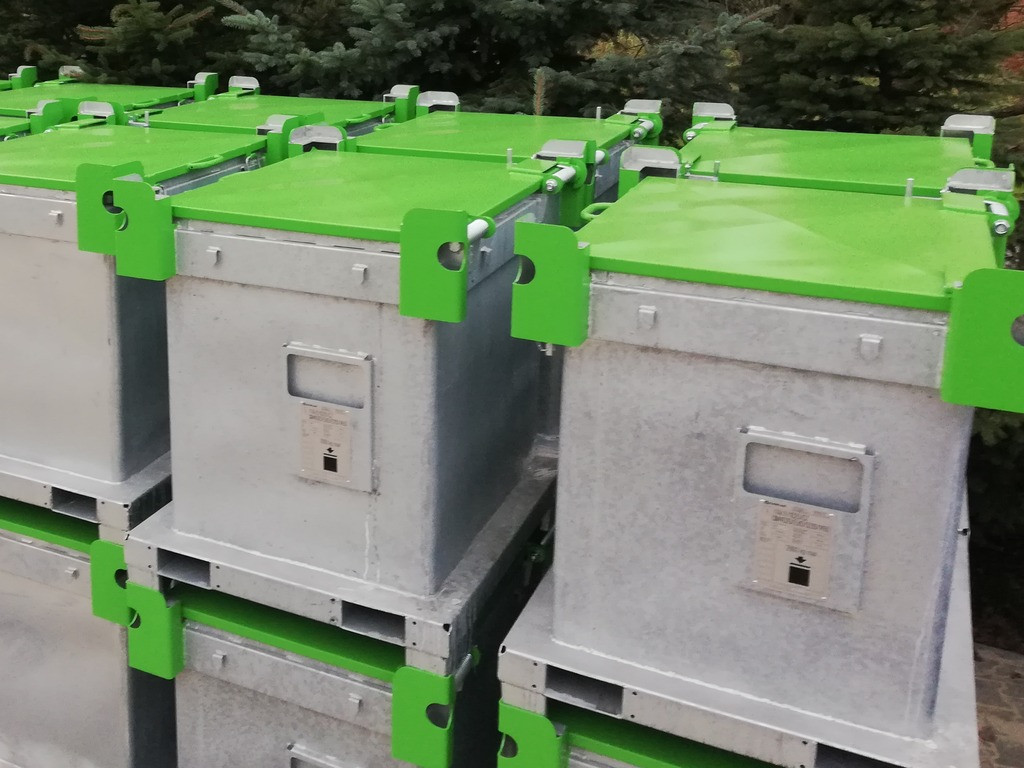

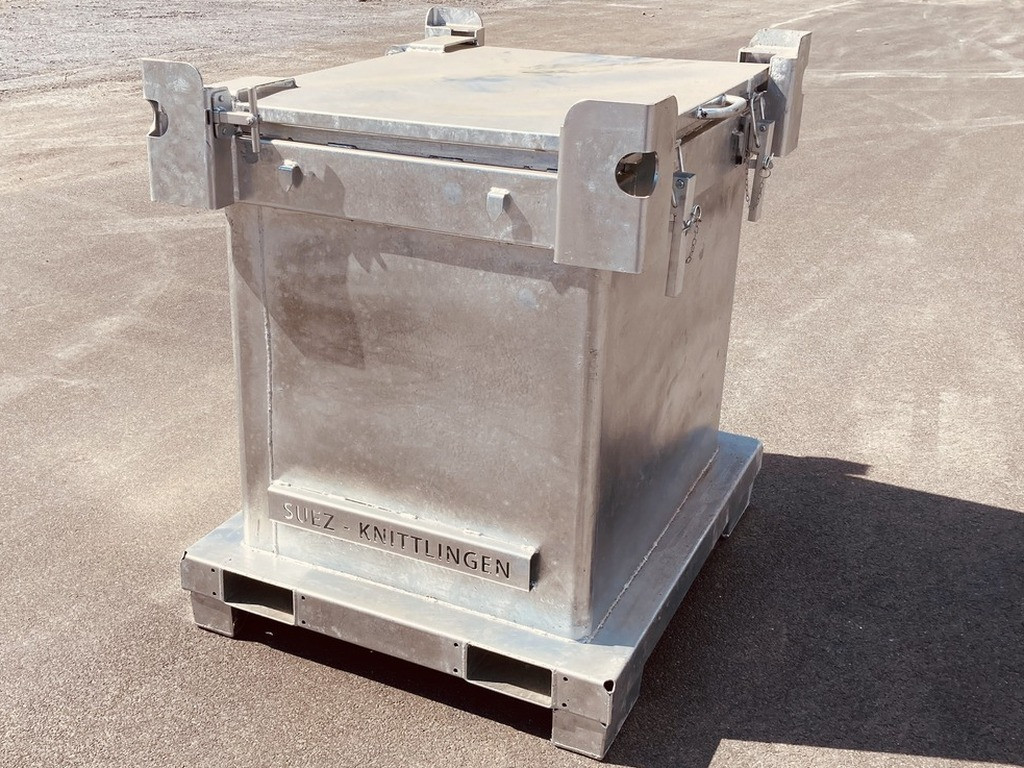

Photogallery
