Hydraulic driven press containers
The press container is equipped with complete hydraulics for connection to the hydraulic pump of the vehicle. Required pump output typically 30-40 l/min. It also requires a 24 V power supply. Filling of the pressing chamber takes place with the help of a crane located on the vehicle. Manipulation of the press container using a standard hook system.
Specifications:
- Rear flap with central mechanical locking.
- The conical shape of the container allows for easy emptying.
- Made according to the German DIN or French AFNOR standard (with appropriate hook height).
- Surface treatment by sandblasting Sa 2.5, basic anti-corrosion coating and top coat according to RAL (approx. 60 + 60 microns).
Options:
- Electro-hydraulic controlled rear flap.
Technical parameters:
| Volume | 10 - 24 m3 |
| Length | 4500 - 7200 mm |
|---|---|
| Width | 2550 mm |
| Height | 2500 mm |
| Dimensions of the filling chamber | 1800x2000x1400 mm |
| Dimensions of the filling chamber (clean) | 1500x1900x600 mm |
| Throw height | 2450 mm |
| Pressing force | 320 kN |
| Time of 1 cycle of the press head* | approx. 36 s, depending on the power of the hydraulic pump on the vehicle |
| Electrical supply | 24 V DC |
| Weight | 4000 - 5400 kg |
| Theor. capacity | 261 m3/hod |
* 4-5 cycles are typically needed to compress the contents of one container with a bottom emptying.

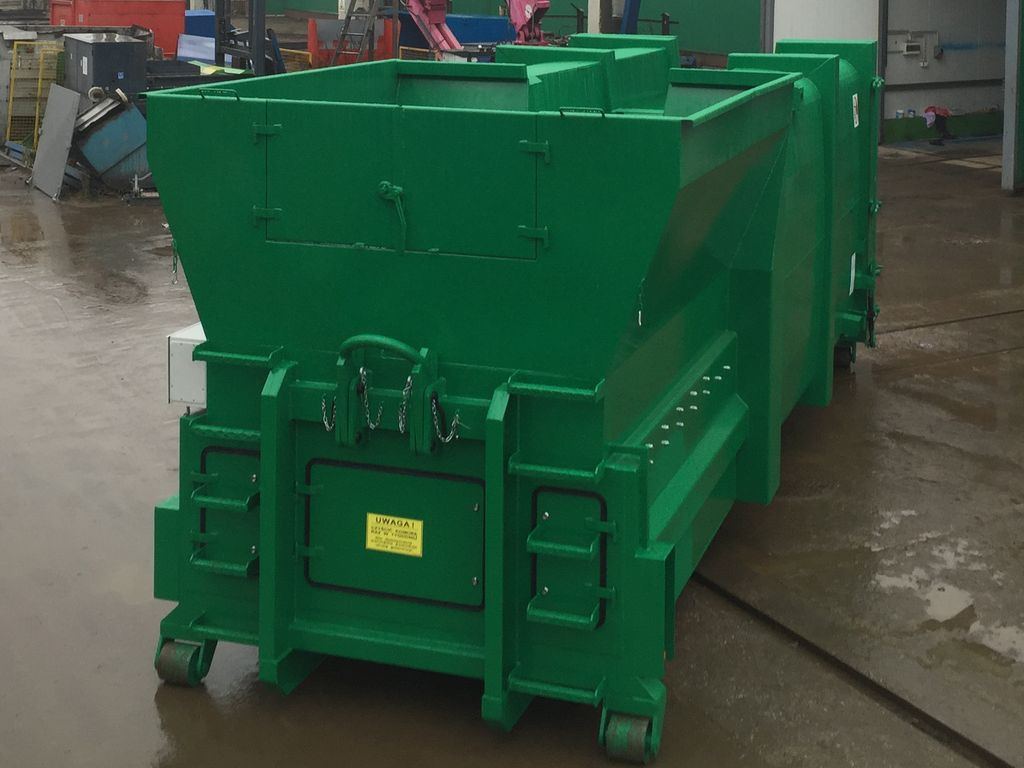

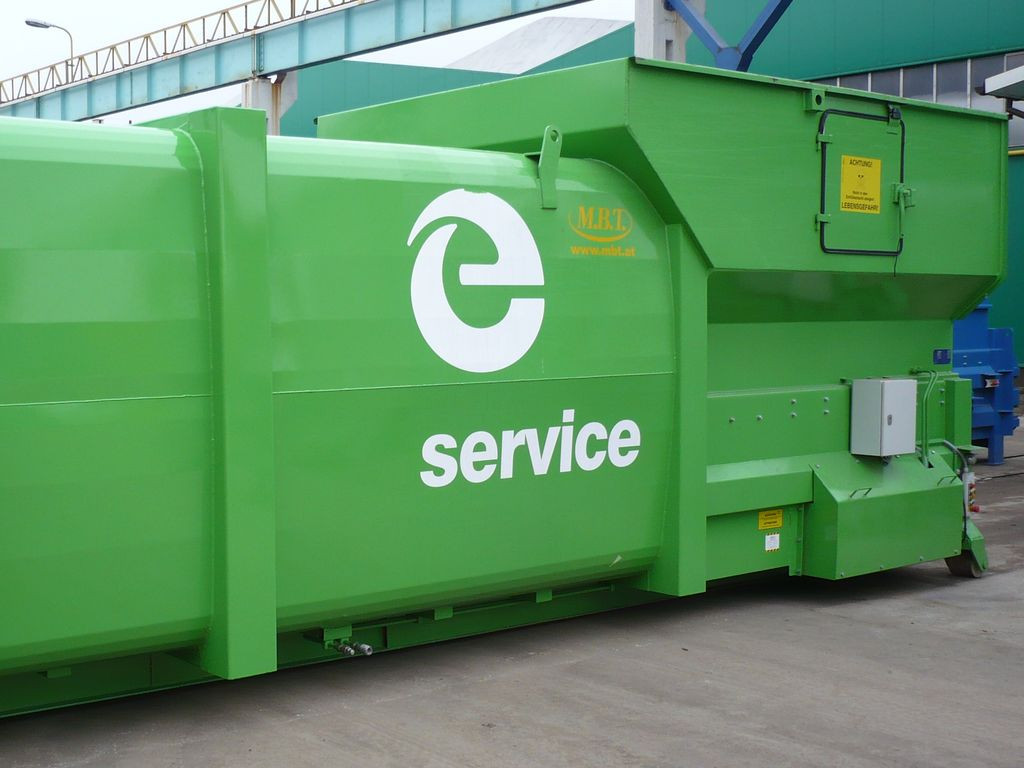

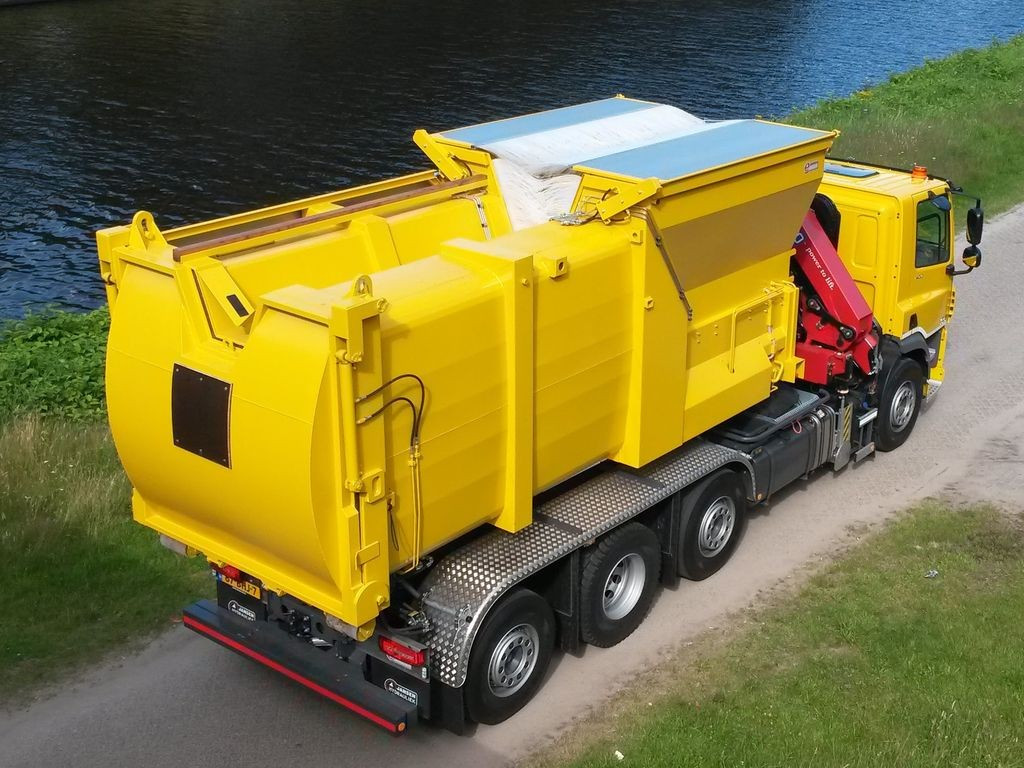

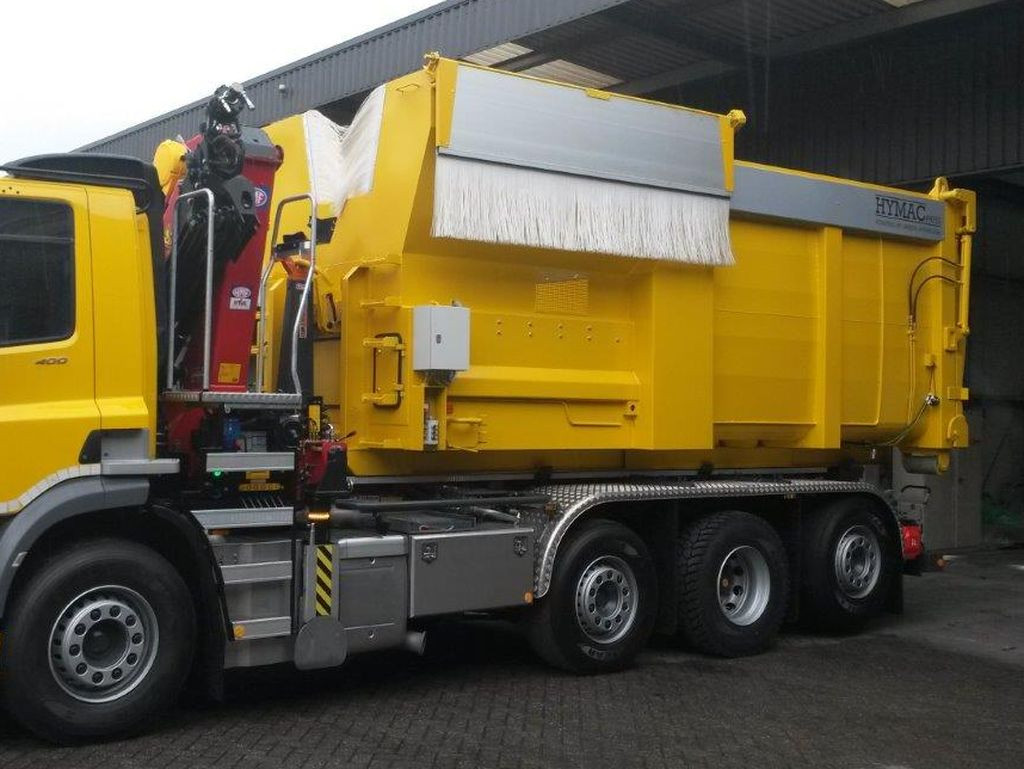

Photogallery
