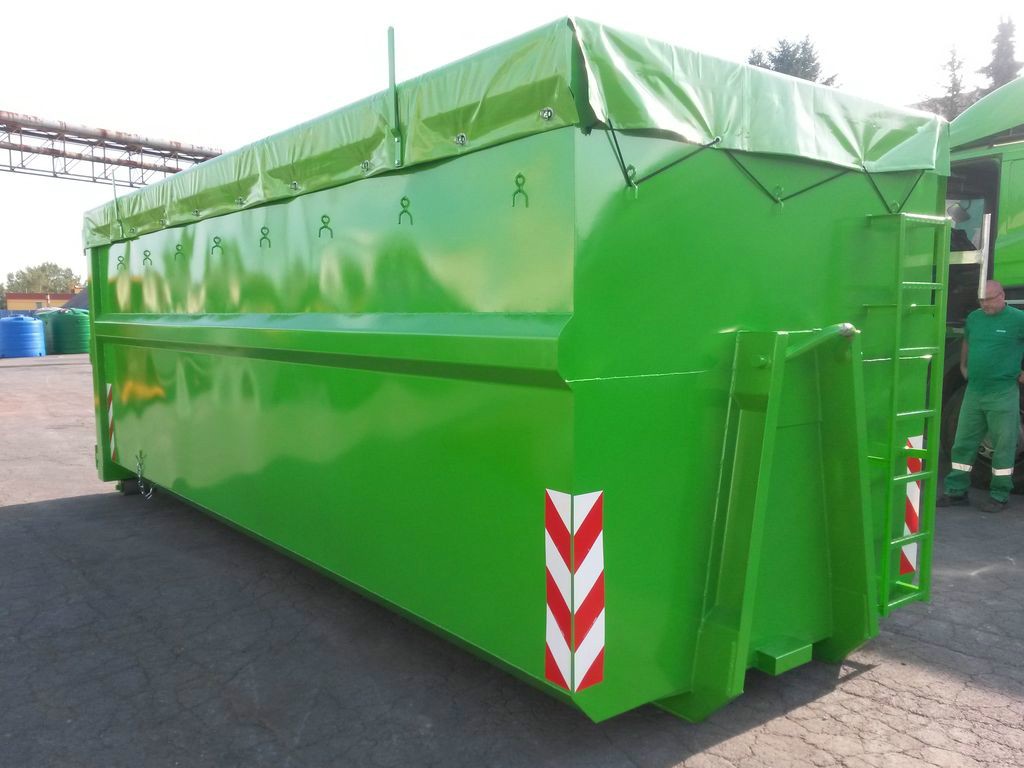

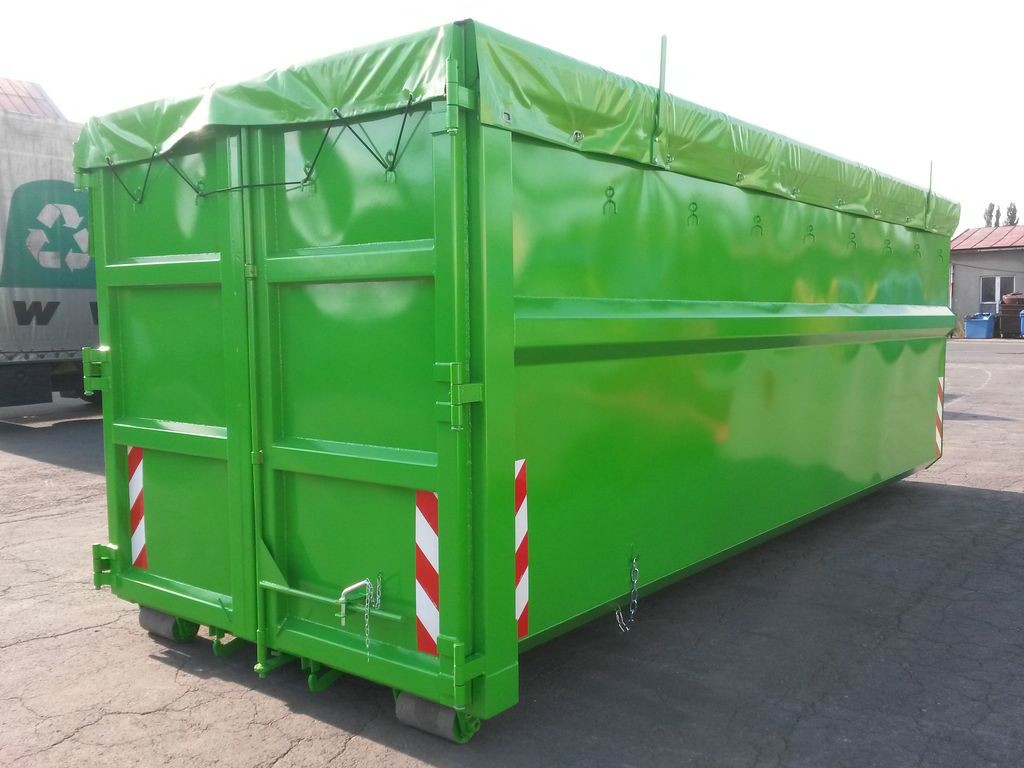

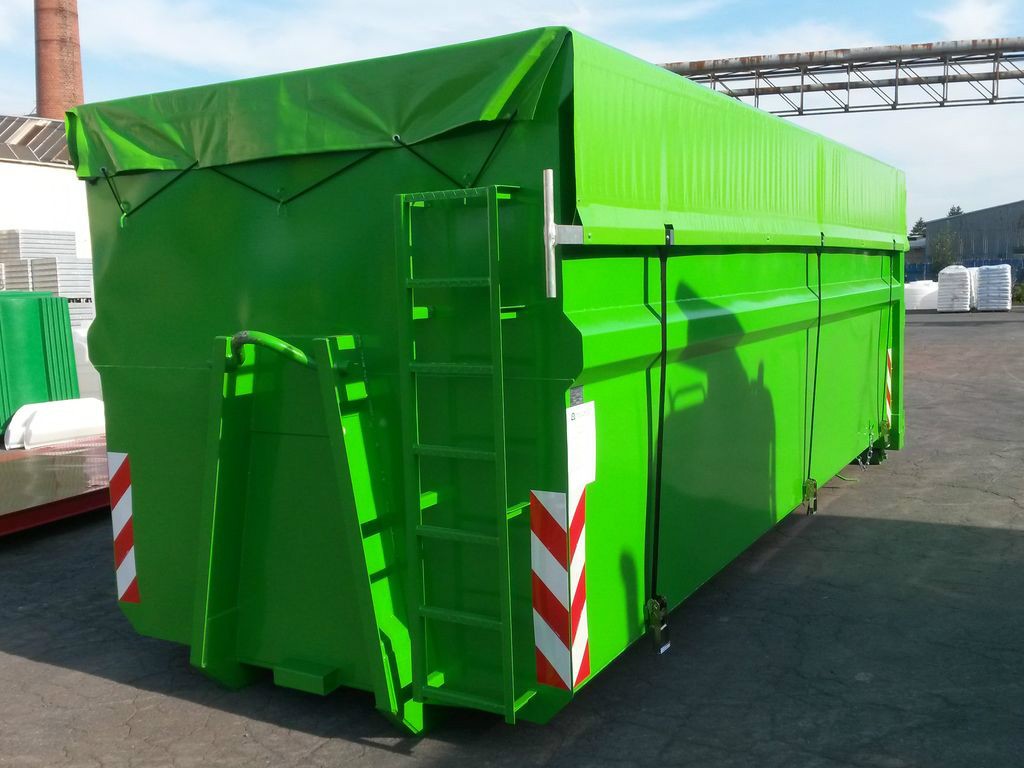

Lightweight version (ABR-LWC)

Very light containers are designed primarily for transport with longer collection distances. The thinner wall strength of the used sheets for walls and floor is compensated by the high strength of the materials used, which have up to 4 times higher tensile strength than ordinary steel. Thanks to this combination, we can reduce the weight of a typical 36 m3 container by about 800-1000 kg. On the truck, our customers will transport up to 2,000 kg more material, which represents a significant saving in transport costs and negative effects on the environment.

Specifications

• design 3/2
• material bottom HARDOX 400 / walls STRENX 700
• hook NA 1570/50
• floor x walls connection VP150 (45/45)
• top hem Bent profile STRENX 700
• floor reinforcement spacing 1000 mm
• rear beam UPN 180
