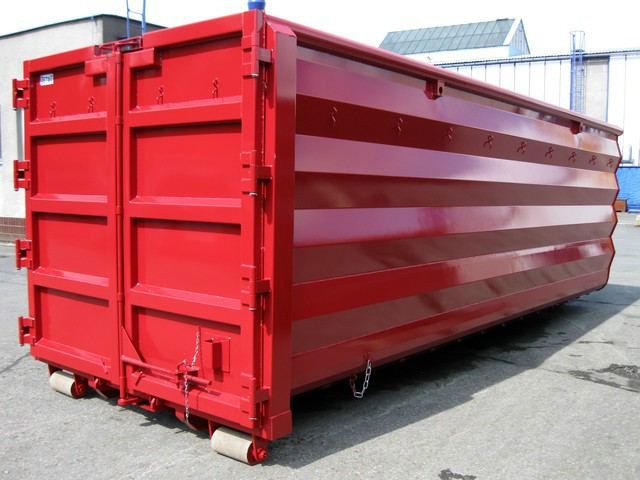

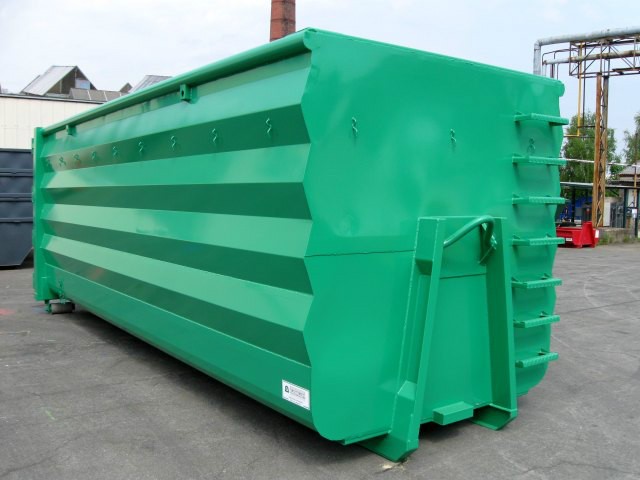

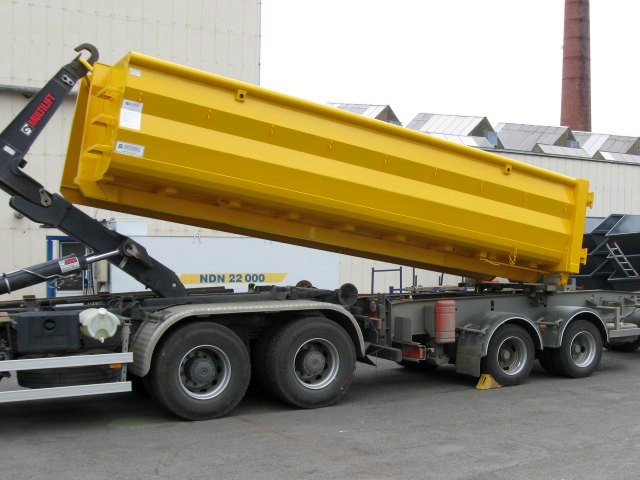

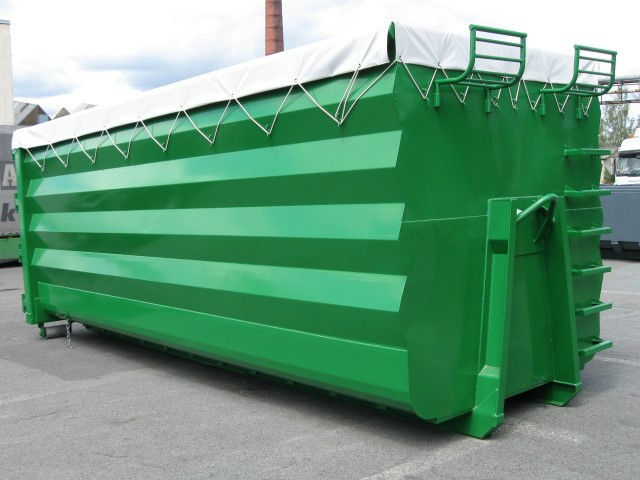

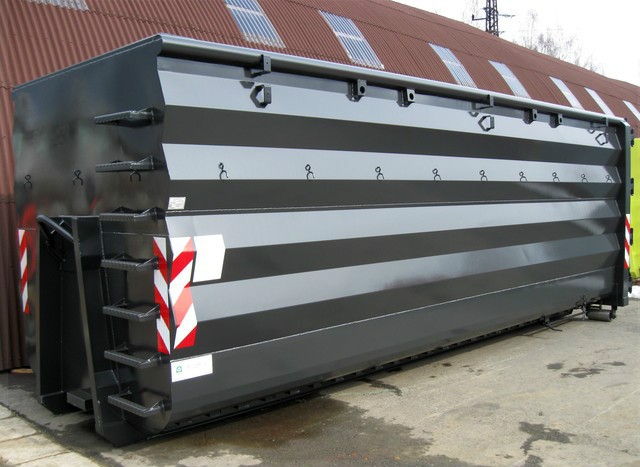

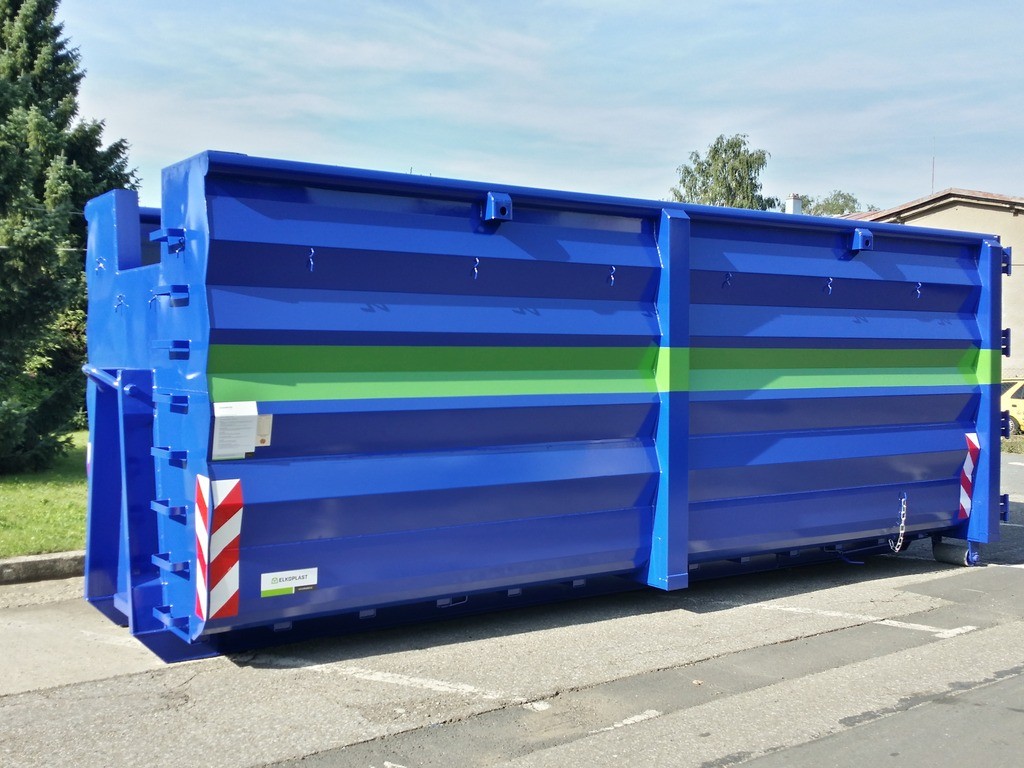

Lightweight Version (ABR-WD)

Design with bended W-shaped sides in combination with higher quality sheets (min. S355 and higher), which guarantee a min. 40% higher strength than ordinary steel. Robust top hem made of tube min. 114 x 6 mm, rear reinforcements made of high-strength sheets and other improvements guarantee high strength and long life. The various characteristics of the materials used make it possible to choose the ideal combination with regard to the economy of operation, the service life of the container and its price.

Specifications:

• in accordance with German (DIN 30 722) or French (NF R 17-108) regulation,
• made of higher quality materials (at least 40 % stronger than regularly used materials),
• robust top profile tube 114x6 S355,
• floor reinforcement spacing 500 mm,
• floor reinforcement profile U 100x60x4,
• high sidewall stability provided by continuous reinforcement,
• rounded sidewalls-bottom junction and raised bottom edges.
