Other Liquid Storage Tanks
Constructed to store water and chemicals in agriculture, fruit and wine growing industry, manufacturing companies, etc.
Specifications
- overground installation,
- single skinned (DC) or double skinned (CDC) version,
- easily handleable thanks to their low weight (lifting eyes on the upper part - to be used for empty tank only),
- outlet with 2" screw connection,
- made of UV stabilized polyethylene (eliminates colour fading), food contact certified and resistant to majority of aggressive chemicals,
- seamless technology guarantees perfect liquid tightness the whole tank lifetime through,
- corrosion-resistant and maintenance-free,
- DC version available in milky/green/blue colour, CDC v version in yellow,
- fully recyclable,
- 5-year guarantee.
Options

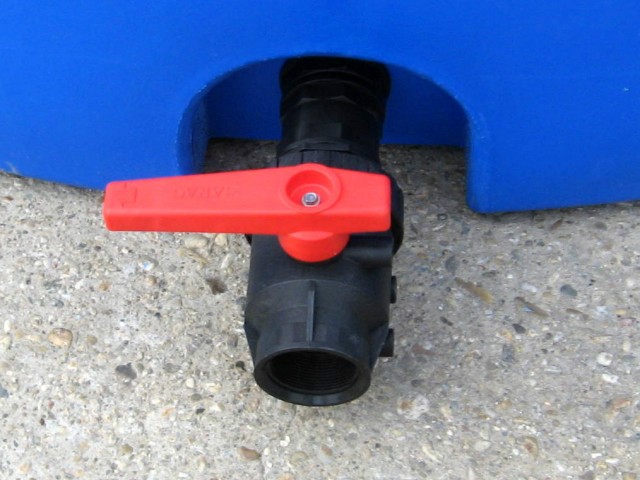

- escape valve DN50 (DC types only),

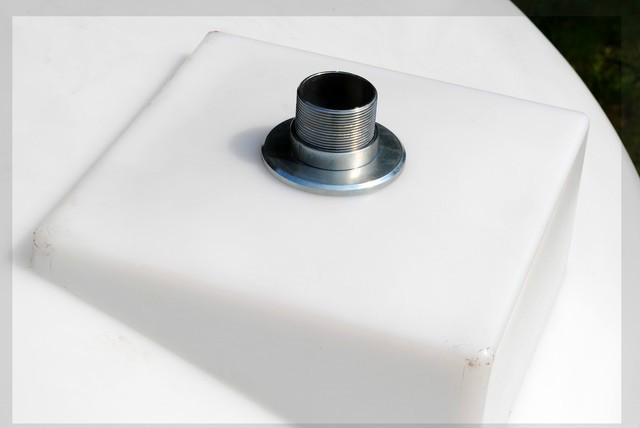

- screwed joint with external thread in the upper part of the tank,
- fixtures for mutual tank connection (DC types only),
- electronic wireless liquid-level monitoring.
Dimensions:
| Type | Diameter | Height | Volume | Weight | Manhole | Filling hole |
|---|---|---|---|---|---|---|

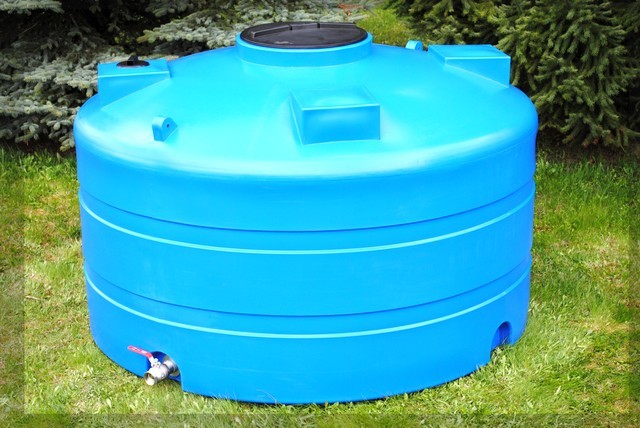

| DC 5000 | ø 2215 mm | 1395 mm | 5000 l | 140 kg | ø 540 mm | ø 112 mm |
| DC 7000 | ø 2215 mm | 1990 mm | 7000 l | 200 kg | ø 540 mm | ø 112 mm |

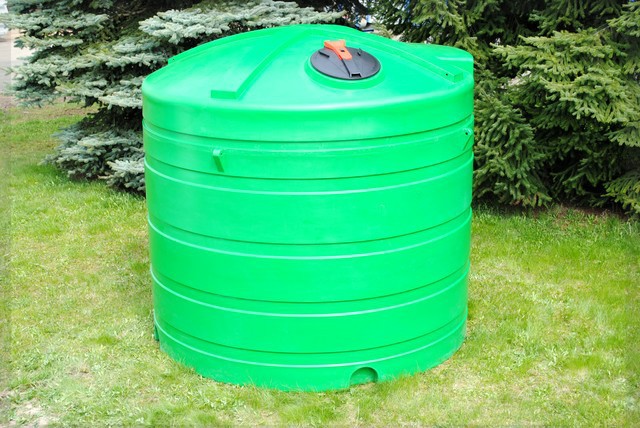

| DC 9000 | ø 2435 mm | 2334 mm | 9000 l | 220 kg | ø 380 mm | ø 380 mm |
| CDC 7000 | ø 2435 mm | 2334 mm | 7000 l | 420 kg | ø 540 mm | ø 112 mm |
