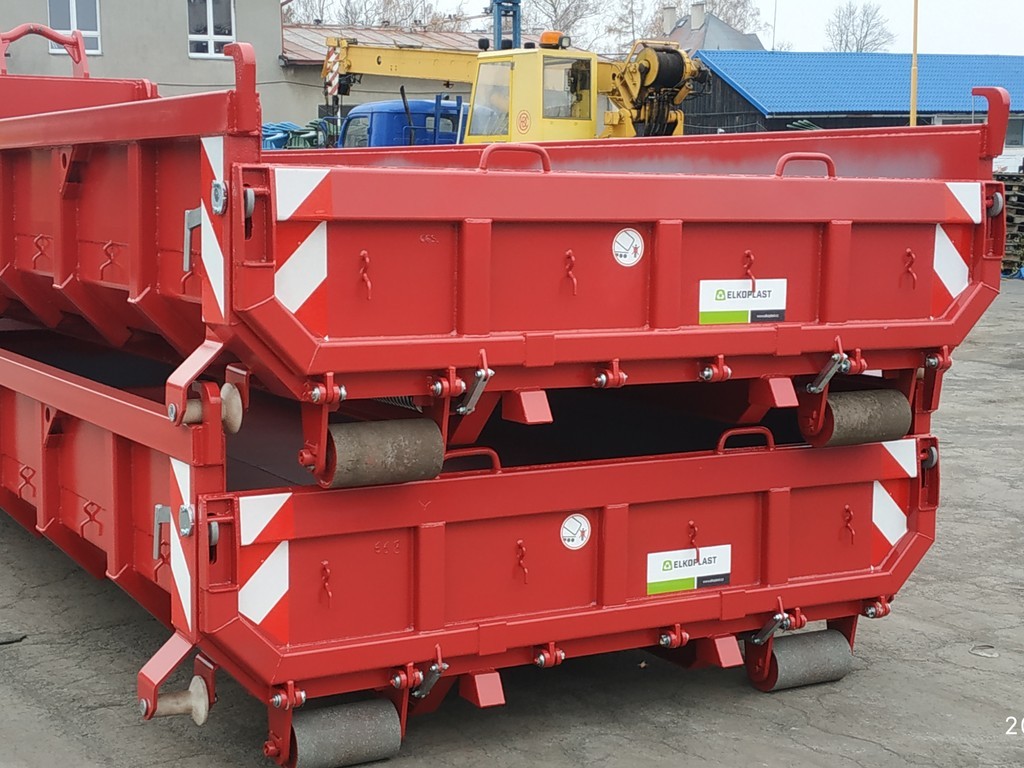

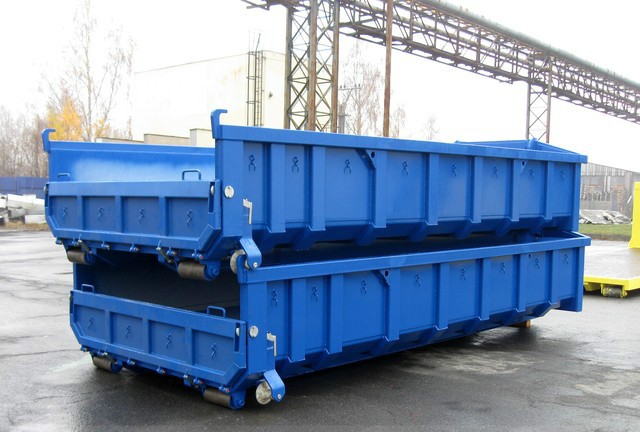

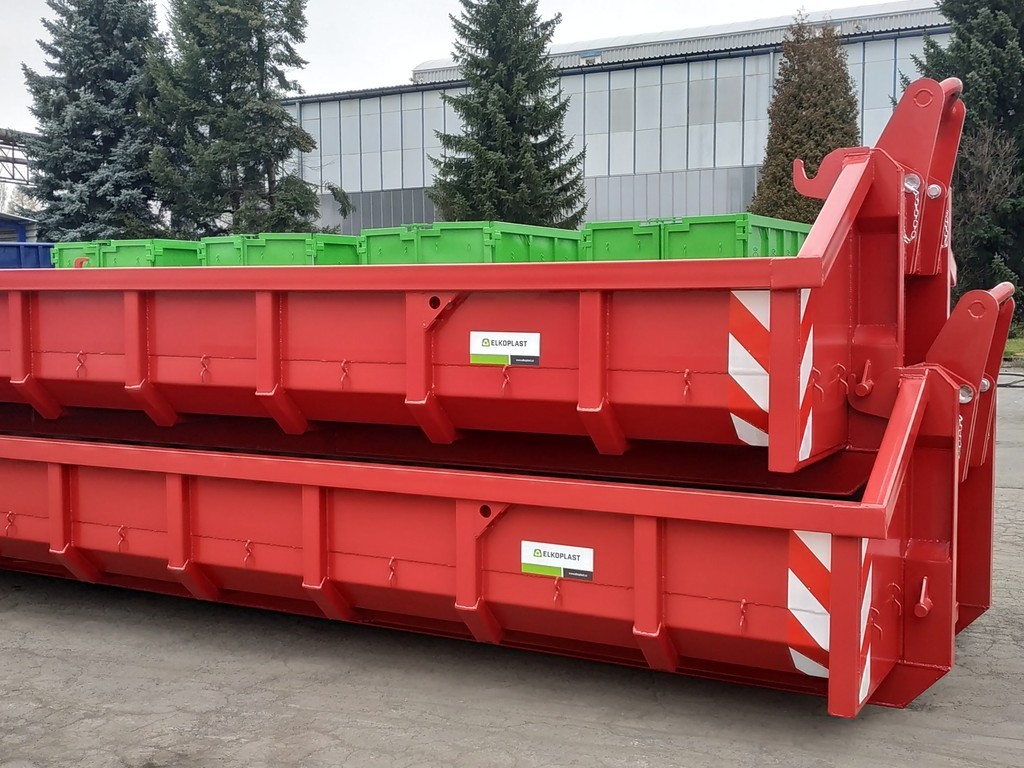

Stackable Version (ABR-STH)

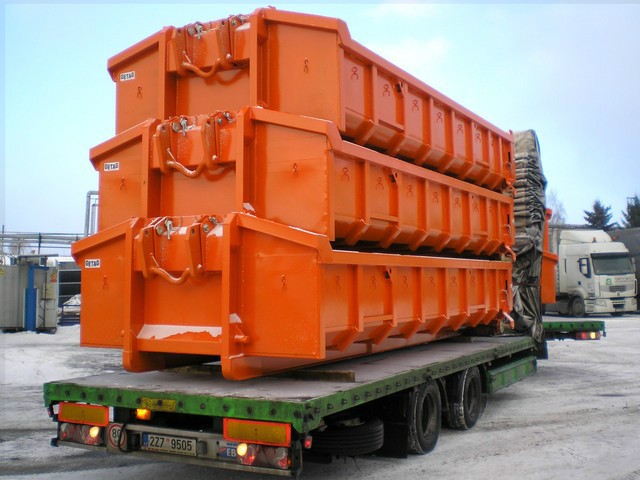

The containers are designed for the transport of rubble, soil and other materials. With the help of the hook carrier, the containers can be easily stacked and thus several containers can be transported together. They are equipped with a 2-wing door or a folding ramp, which is suspended by 2 strong springs for easy closing.

Specification:

• according to German (DIN 30 722) or French (NF R 17-108) standards,
• folding hook NS 1570/60,
• floor 6 mm, side and 4 mm front, option 5/4
• massive top hem, 100x80x6 S355,
• side reinforcement pitch 750 mm, option 500 mm,
• floor-spacing 750 mm,
• profile reinforcement floor, U 100x60x4
• IPN intermediate reinforcement,
• securing C in the skid,
• rollers 2 pcs length 300 mm,
• roller pin lubricated / diameter 40 mm (CR 300/40), option 50 mm (CR 300/50),
• door version flap (KLP) 500 mm, option 2 wings (closing VSH),
• tarpaulin hooks yes / 300 mm / 10mm,
• lengths 5500/5750/6000/6250 mm,
• height 650/750 mm,
• width 2300 mm,

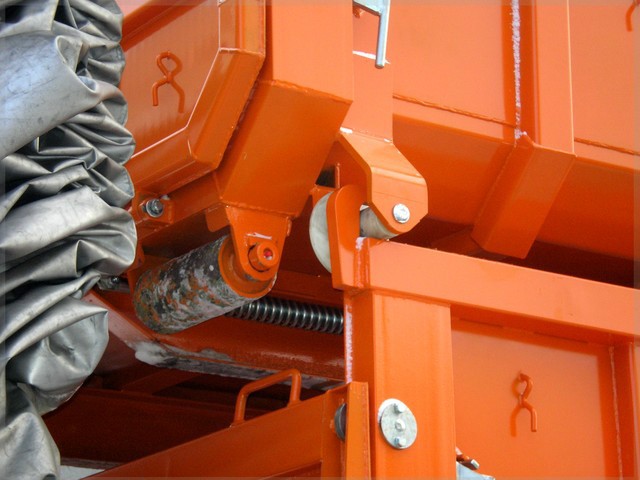

• special rollers for stacking.
